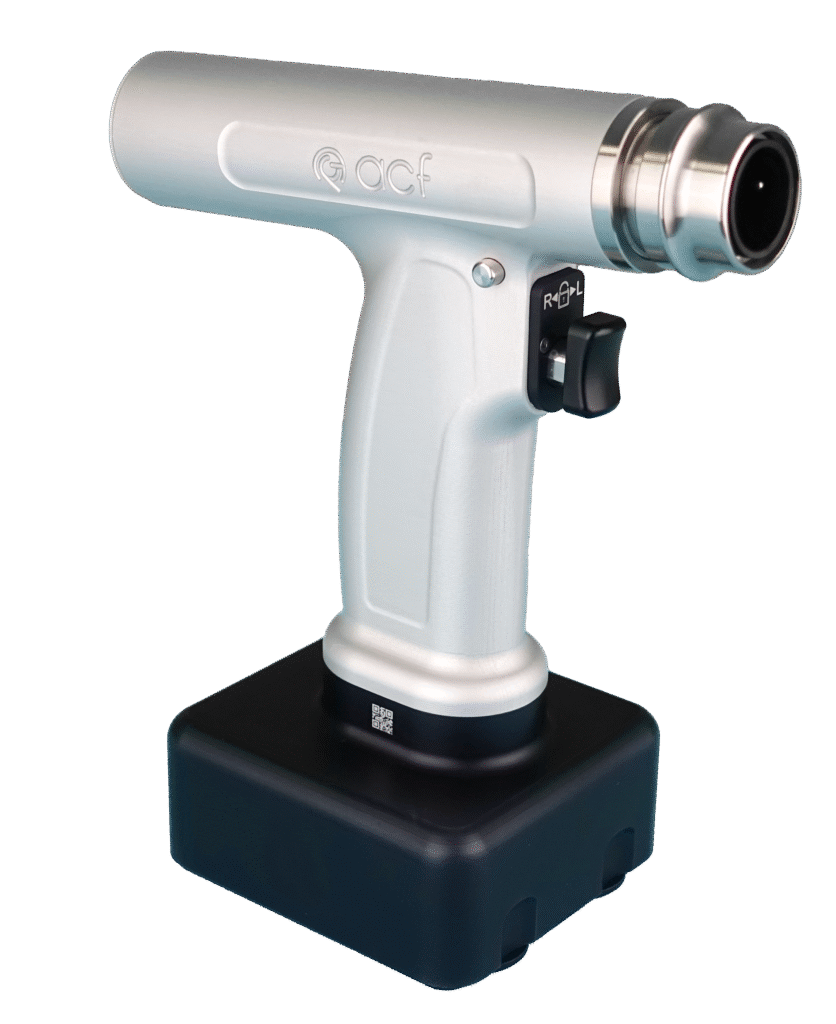

ACF Sign+ modular surgical handpiece

Modular Handpiece

For Drilling, Reaming, Wire and Pin Driving

Product Code : A01 310

Reaming torque icon

HIGHEST TORQUE IN THE WORLD

With 21 Nm of reaming torque, the surgeon can easily complete challenging acetabular reaming operations.

Nano drive internal motor icon

HI-TECH INTERNAL MOTOR AND DRIVER

Sign+ systems provide less consuming energy and less heating up thanks to less current requirement.

ACF Sign+ modular handpiece logo

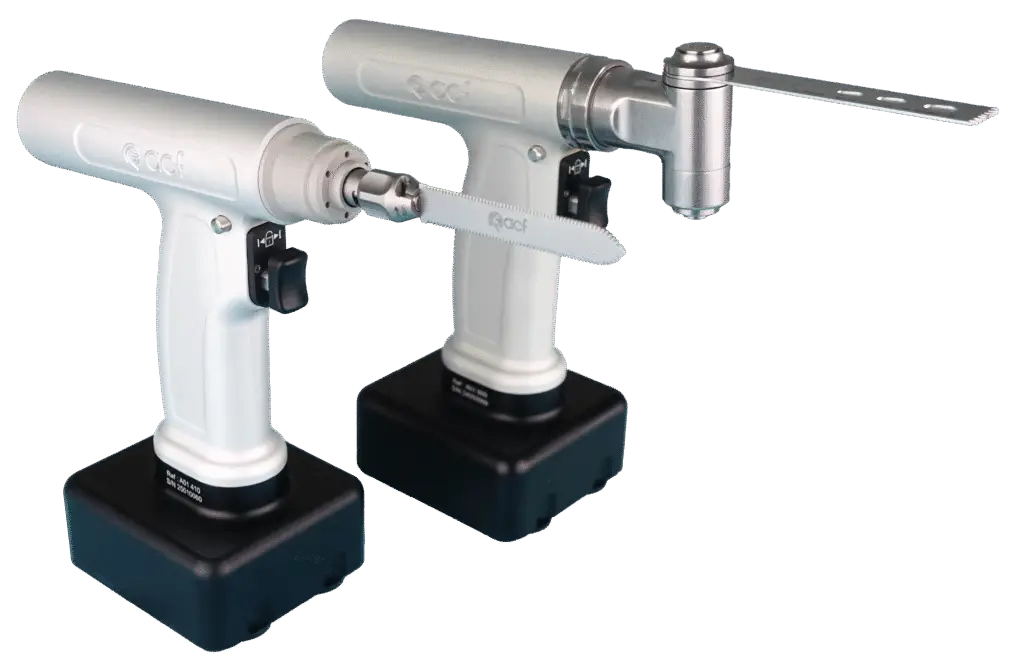

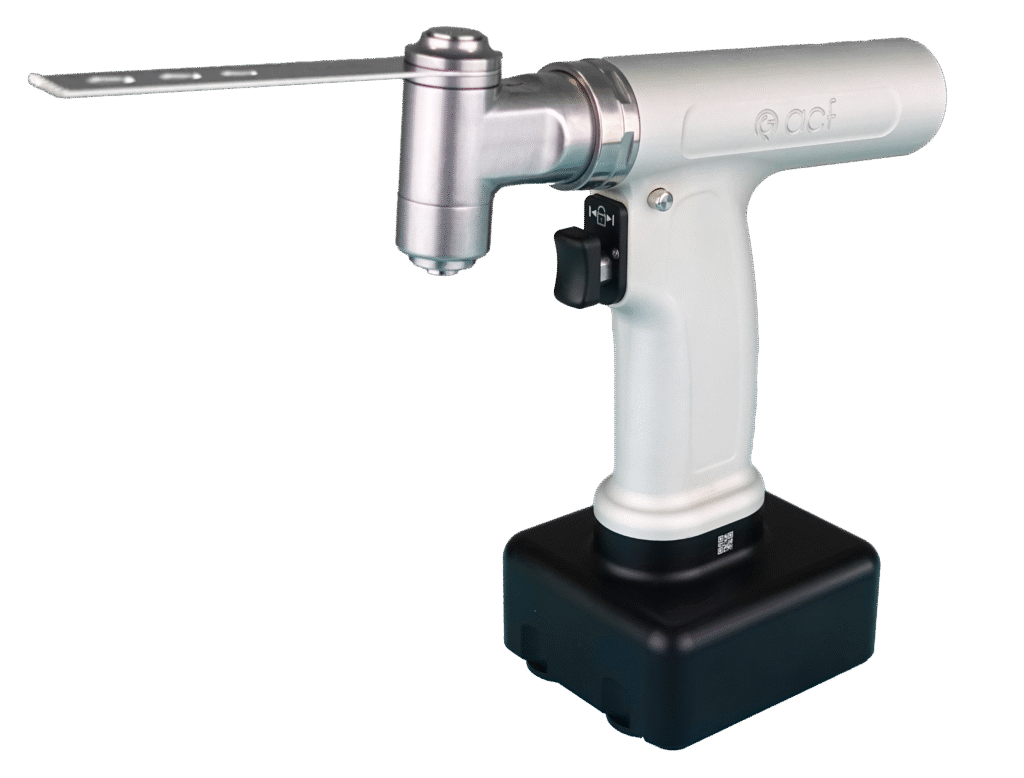

ACF oscillating saw handpiece with rotational saw head

Saw Handpiece

For Oscillating Cutting

Product Code : A01 400, A01 600*

Rotational saw head icon

ROTATIONAL SAW HEAD OPTION
(A01 600*)

Saw handpiece head can make incisions in 8 different positions with 45° angles.

Single sensitive trigger icon

SINGLE SENSITIVE TRIGGER

The doctor has control throughout the operation, even the minimum oscillation created by the blade is noticed, and the entire movement of the blade can be seen accurately.

ACF Sign+ saw handpiece logo
ACF oscillating saw handpiece with rotational saw head

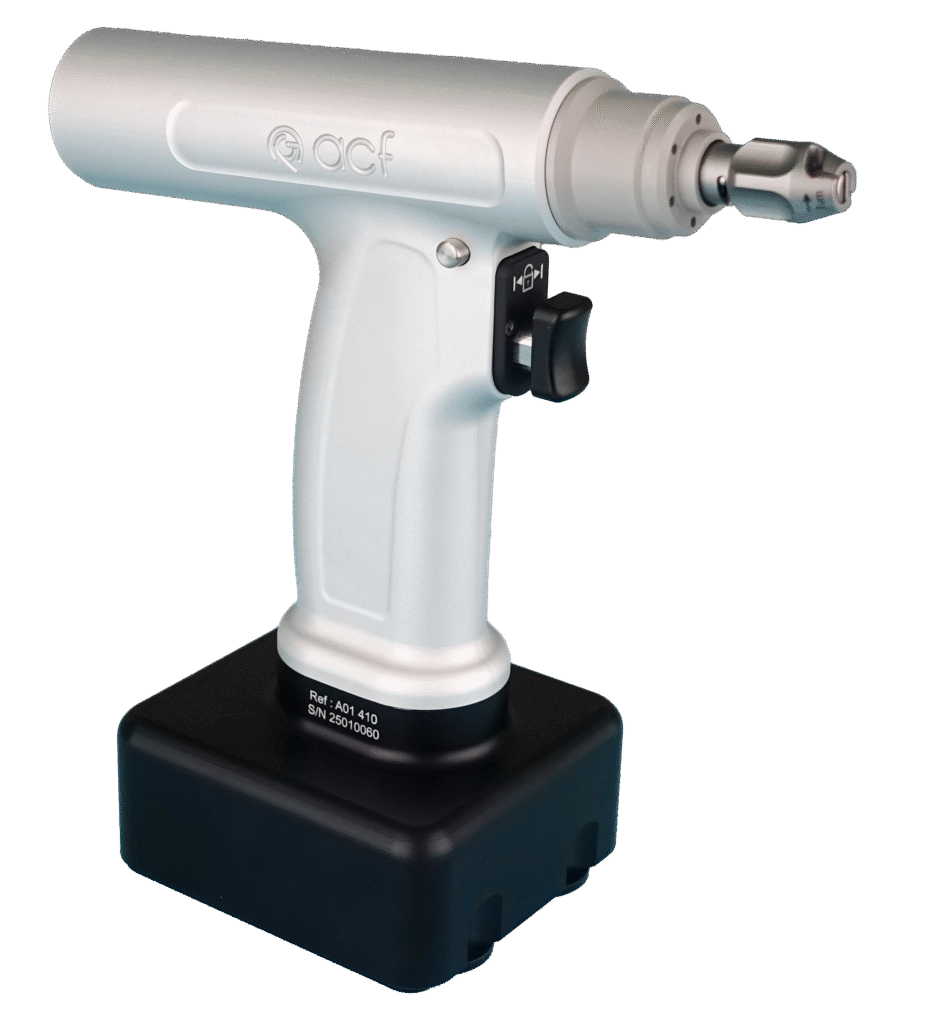

ACF reciprocating saw handpiece

Reciprocating Handpiece

For Reciprocating Cutting

Product Code : A01 410

Fixed battery housing icon

FIXED BATTERY HOUSING

The handpiece and battery housing are produced as a whole. The battery housing is not a separate part. This prevents problems caused by constant removal and insertion.

Aerospace-grade body icon

AEROSPACE-GRADE BODY

Aluminum material extends the technical service life of the device compared to hard plastics.

ACF Sign+ surgical power tools logo
IPX6 water protection icon

IPX6 WATER PROTECTION

Sign+ power tool handpieces can be safely washed in the automatic machine.

No lubrication needed icon

NO LUBRICATION NEEDED

Thanks to special gress oil inside, you don’t need lubricate after each wash / autoclave.

Ready to use in emergency icon

READY TO USE IN EMERGENCY

With electronic components resistant to high temperatures, it can be operated while still hot in emergencies.

Turbo charging lithium-ion battery icon

TURBO CHARGING / LITHIUM ION

You can charge your batteries (3000 mAh) until the surgeon opens the soft tissue and needs the surgical power tools (within 10 - 15 minutes).

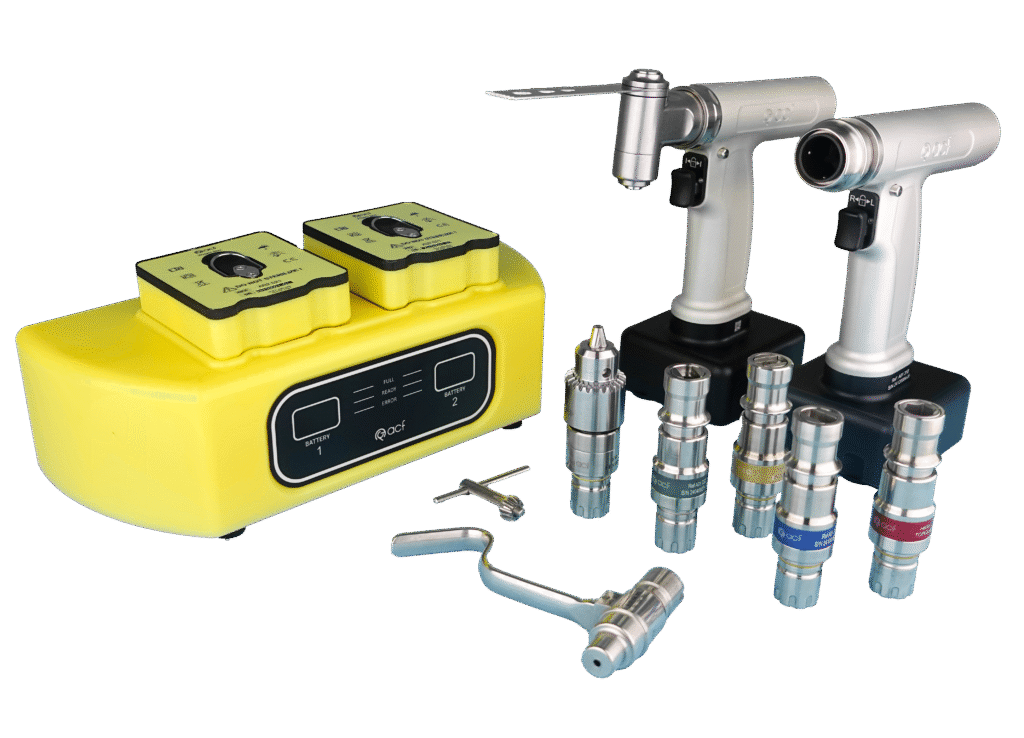

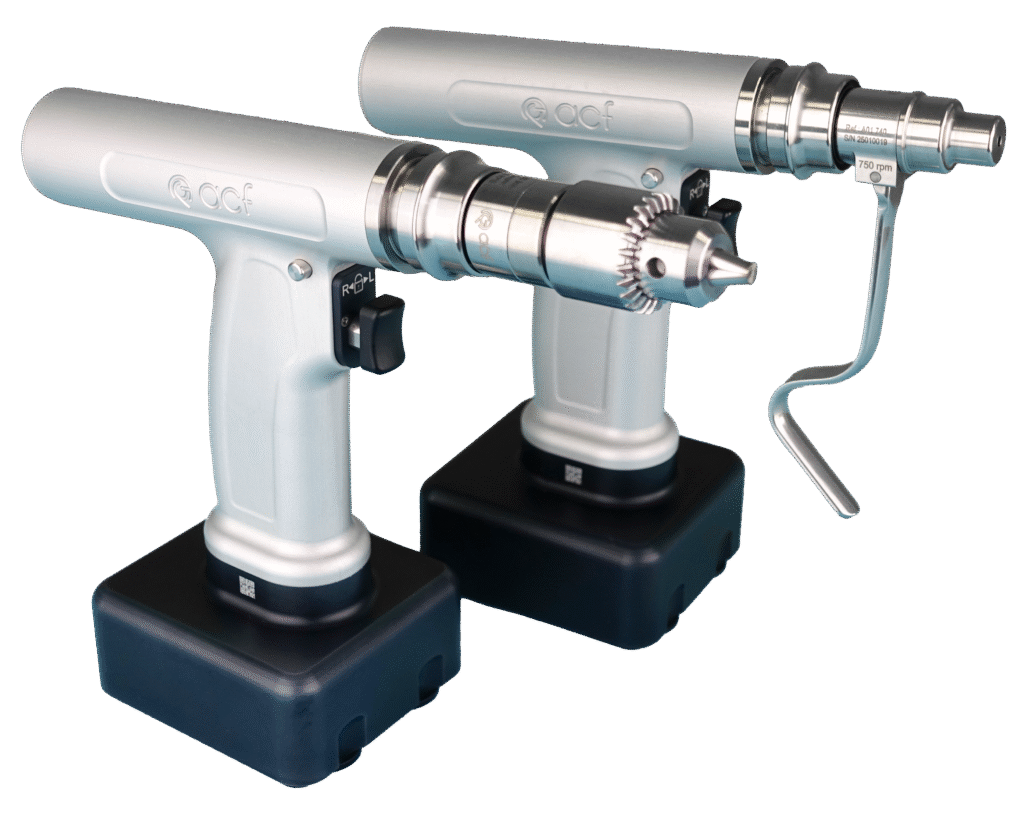

ACF surgical power tool system with handpieces and accessories

Product Code : A02 461 (Charger), A02 521 (Power Box)

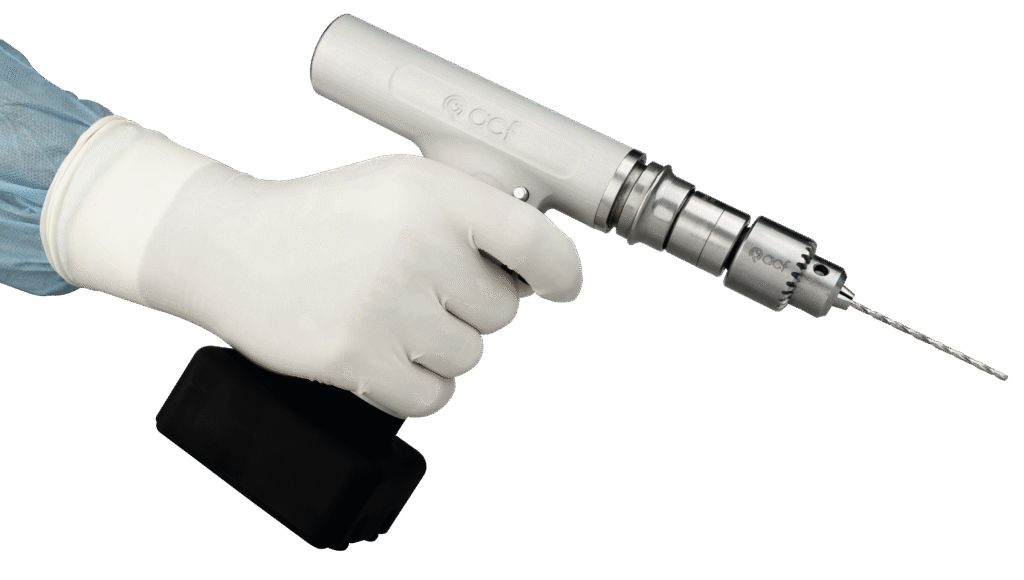

ACF surgical drill handpiece held in hand
ACF surgical handpiece dimensions

BALANCED AND ERGONOMIC

Our handpieces are ergonomically designed for reliable one-handed use, with balanced battery and gearbox positioning, a 4.9 mm grip diameter, and a handle length that fits the full width of the palm.

Adapters for Modular Handpiece (A01 310)

ACF drill and reamer adapters for the modular handpiece

Drills

For Drilling with High Speed

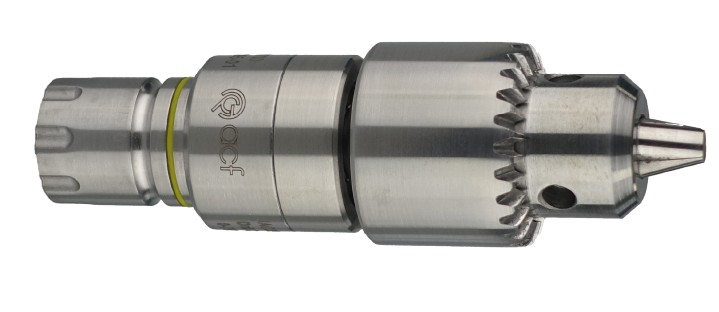

ACF A01 700 – Adapter for Drill (Keyed)

A01 700 - Adapter for Drill (Keyed)

For 0-8 mm Rounded Drill Bits

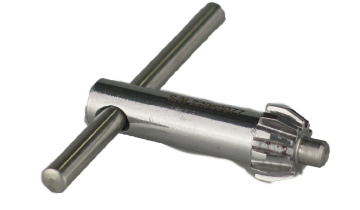

ACF A04 101 – Key for Chuck / Type / 01

A04 101- Key for Chuck / Type / 01

Used with A01 700

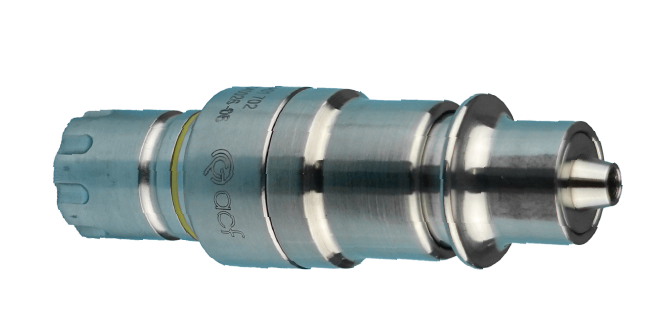

ACF A01 702 – Adapter for Drill / A.O. Synthes / Small

A01 702 - Adapter for Drill / A.O. Synthes / Small

For Special Synthes Contact Drill Bits

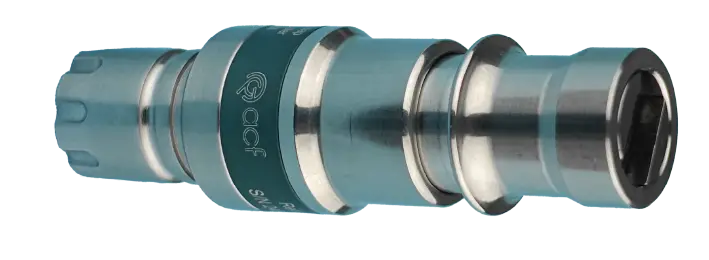

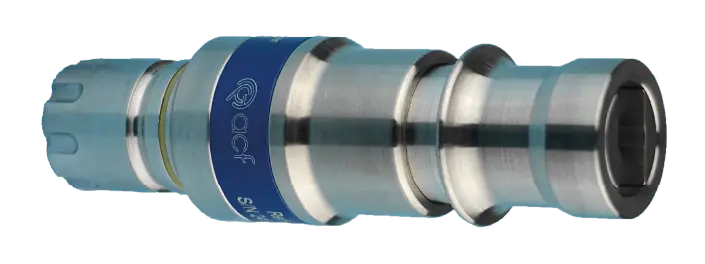

Reamers

For Reaming with High Torque

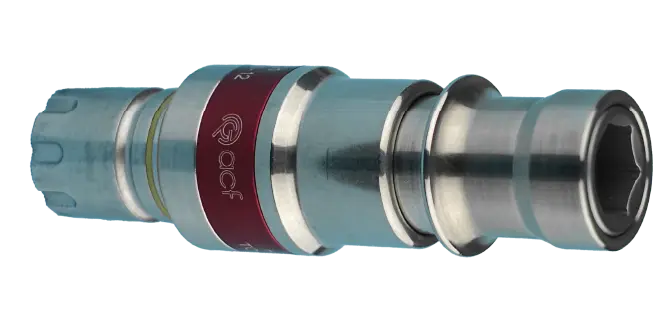

ACF A01 720 – Adapter for Reamer / Zimmer

A01 720 - Adapter for Reamer / Zimmer

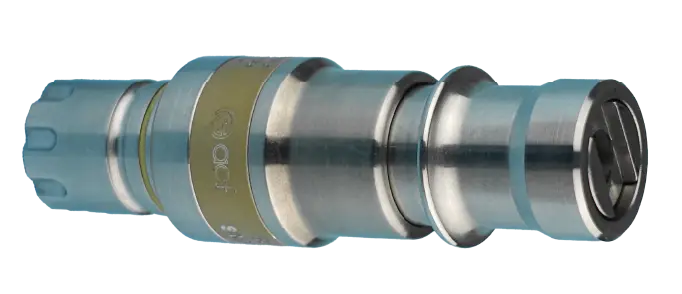

ACF A01 721 – Adapter for Reamer / A.O. Synthes

A01 721 - Adapter for Reamer / A.O. Synthes

ACF A01 722 – Adapter for Reamer / Harris / Aesculap

A01 722 - Adapter for Reamer / Harris / Aesculap

ACF A01 723 – Adapter for Reamer / Hudson - Stryker

A01 723 - Adapter for Reamer / Hudson - Stryker

Wire / Pin Drivers

For Wire/Pin Driving with High Speed

ACF A01 750 – Adapter for Pin Driver (2.6 - 3.2 mm) A01 751 - Adapter for Pin Driver (3.3 - 4.0 mm)

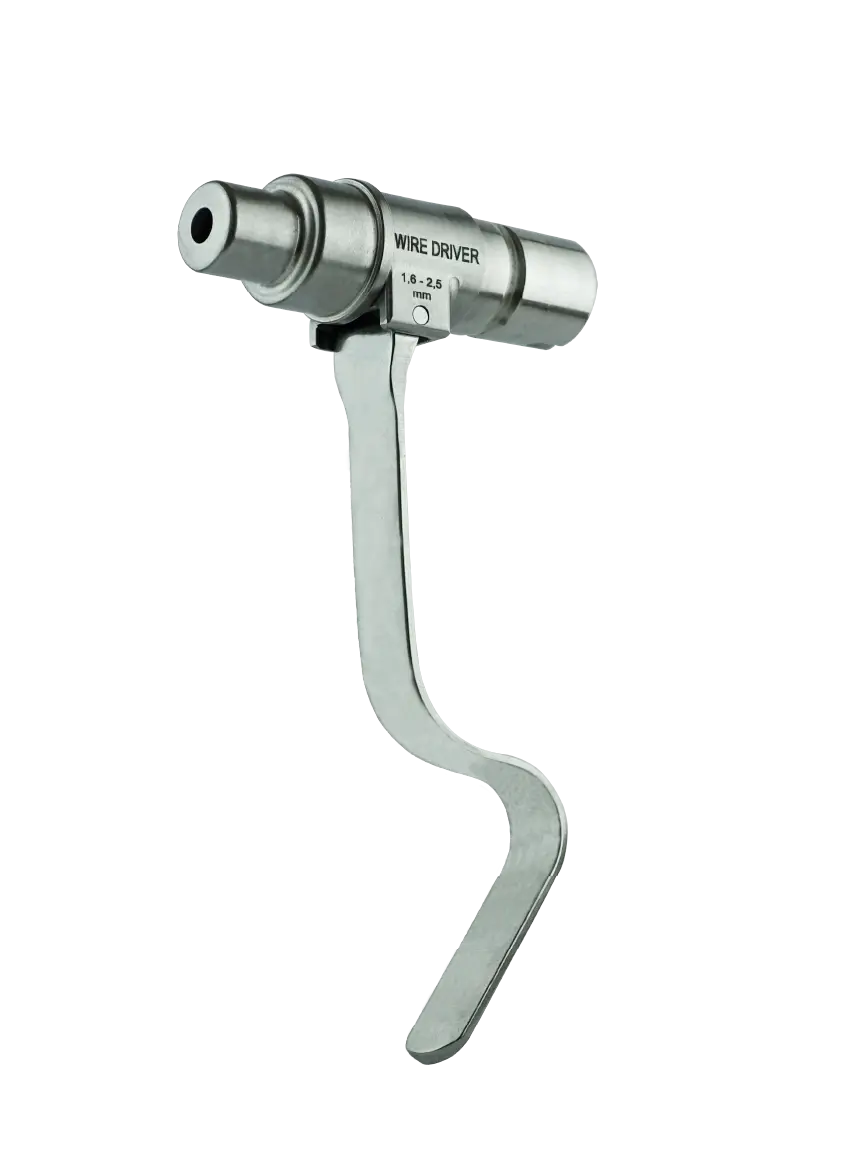

A01 740 - Adapter for Wire Driver (1.6 - 2.5 mm)
A01 741 - Adapter for Wire Driver (0.5 - 1.5 mm)

ACF A01 750 – Adapter for Pin Driver (2.6 - 3.2 mm) A01 751 - Adapter for Pin Driver (3.3 - 4.0 mm)

A01 750 - Adapter for Pin Driver (2.6 - 3.2 mm)
A01 751 - Adapter for Pin Driver (3.3 - 4.0 mm)

Saw Blades for Reciprocating Handpiece (A01 410) and Saw Handpiece (A01 400, A01 600)

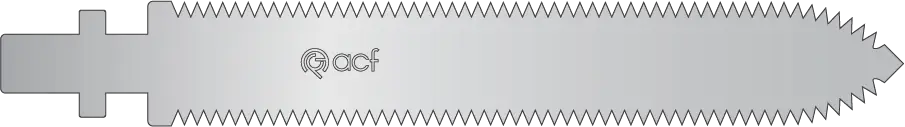

ACF saw blades for the reciprocating handpiece

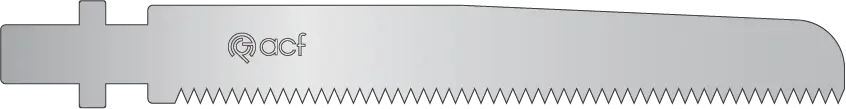

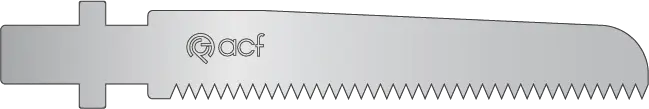

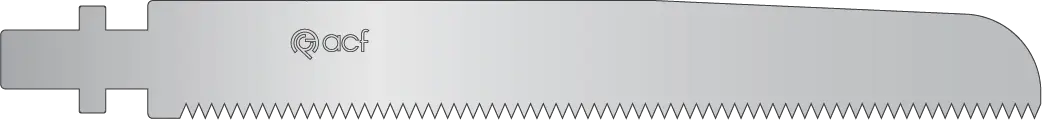

Reciprocating Saw Blades (360)
Competible with A01 410

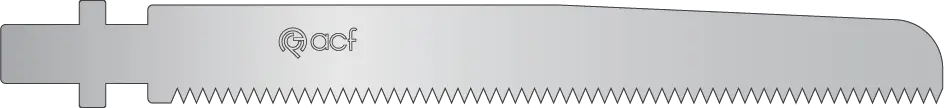

ACF 360-090-050-060 reciprocating surgical saw blade

360 090 050 060

9x50x0,60 mm

ACF 360-090-060-100 reciprocating surgical saw blade

360 090 060 100

9x60x1,00 mm

ACF 360-100-070-060 reciprocating surgical saw blade

360 100 070 060

10x70x0,60 mm

ACF 360-100-080-100 reciprocating surgical saw blade

360 100 080 100

10x80x1,00 mm

ACF 360-125-076-060 reciprocating surgical saw blade

360 125 076 060

12,5x76x0,60 mm

ACF saw blades for the reciprocating handpiece

Please check saw blades catalog for all dimensions and shapes.

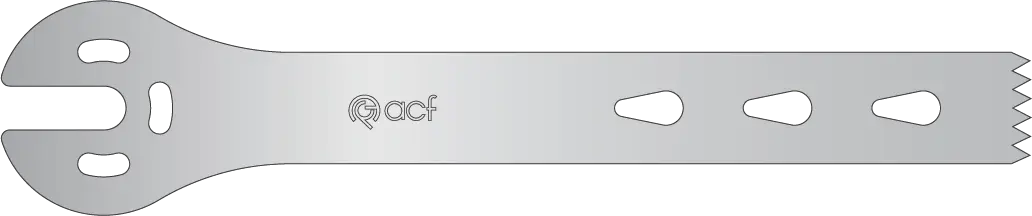

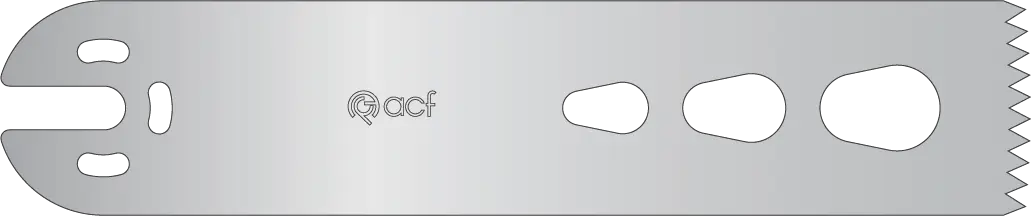

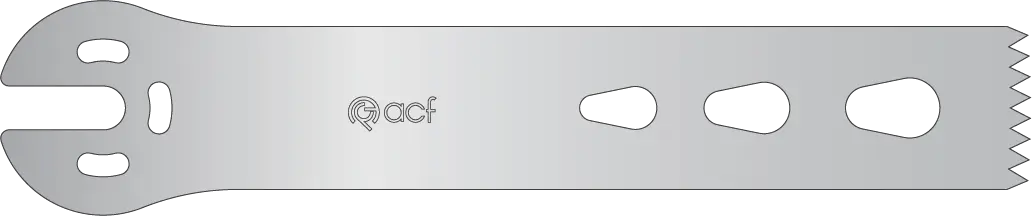

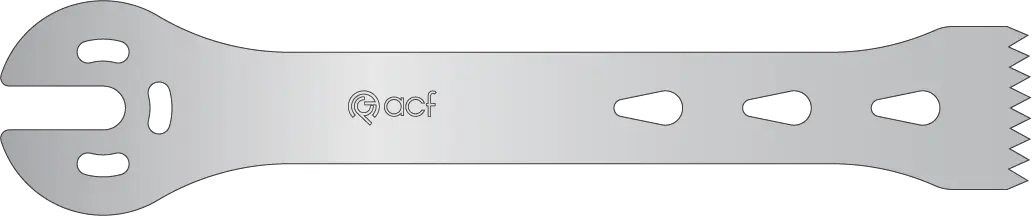

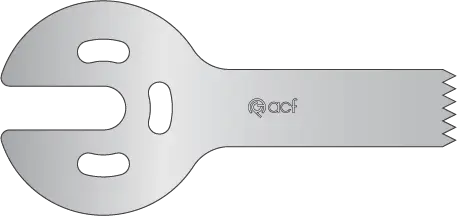

Oscillating Saw Blades (360)
Competible with A01 400, A01 600

ACF 360-130-090-100 reciprocating surgical saw blade

360 130 090 100

13x90x1,00 mm

ACF 360-190-090-127 reciprocating surgical saw blade

360 190 090 127

19x90x1,27 mm

ACF 360-195-090-119 reciprocating surgical saw blade

360 195 090 119

19,5x90x1,19 mm

ACF 360-250-090-137 reciprocating surgical saw blade

360 250 090 137

25x90x1,37 mm

ACF 360-090-025-060 reciprocating surgical saw blade

360 090 025 060

9x25x0,60 mm

Please check saw blades catalog for all dimensions and shapes.

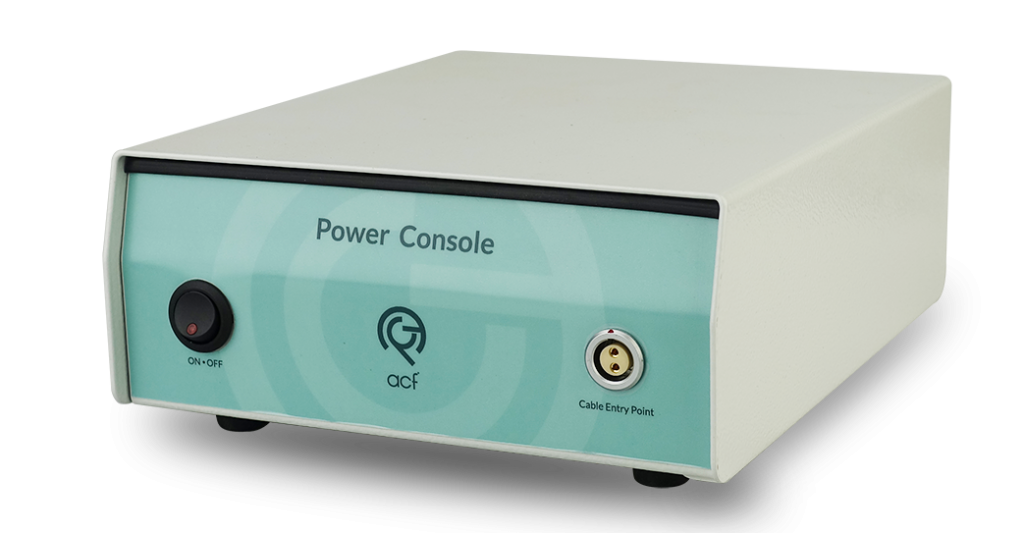

Cable System Option

Sign+ offers all the technical features and advantages of its battery-powered system in its cabled version as well. It is a reliable alternative for users who cannot give up their habits.
